GZ4260 CNC Fully Automatic Hydraulic Band Saw Machine Band Saw Machine
Schen CNC band sawing machine GZ4260 is the company's comprehensive domestic and foreign advantages of similar products, scientific design of a series of products.Adopting advanced PLC control, it has the characteristics of reasonable structure, stable performance, simple and reliable operation, etc.Suitable for cutting all kinds of ferrous and non-ferrous metals under 600×600mm.It is an ideal product with narrow incision, high efficiency, material saving and energy saving.
Features of band saw machine tools:
1. PLC touch screen and grating ruler are adopted to control the human-machine interface system, with reliable action, stable operation and high precision.
2. All operation actions are completed by the hydraulic system.
3, feeding length: each time the length can be sent 400mm, multiple feeding, feeding using grating ruler control, high precision
4. Cutting feed: adopt hydraulic stepless speed regulation..
| Model Name | GZ4240 | GZ4250 | GZ4260 |
| Max.cutting(mm) | ●400■400W×400H | ●500■500W×500H | ●600■600W×600H |
| Saw blade speed(m/min) | 27,45,69 | 27,45,69 | 27,45,69 |
| Saw blade size(mm) | 41×1.3×5000 | 41×1.3×5800 | 54×1.6×6640 |
| Main motor(kw) | 4 | 5.5 | 5.5 |
| Hydraulic motor(kw) | 0.75 | 0.75 | 1.5 |
| Single feed length(mm) | 500 | 500 | 500 |
| Feeding precision(mm) | ±0.20 | ±0.20 | ±0.20 |
| Main transmission structure | Worm gear transmission |
| Working clamping mode | Hydraulic vice |
| band saw blade tensioning method | Manual |
| Cleaning | wire brush & flood coolant |
| Dimensions (mm) | 2400×2380×1800 | 2800×2400×2050 | 3100×2500×2100 |
Advantages of band saw machine structure:
1. The band saw machine is a double-cylinder double-cylinder structure with ultra-long sliding sleeve (with self-lubricating bearing inside), which constitutes a stable sawing structure to ensure guiding accuracy and stable and reliable sawing;
2. The band saw machine saw belt guide device of the sawing machine is double guided by carbide and rolling bearing, which is reasonable in design and effectively prolongs the service life of the saw belt.
3. High performance worm gear reducer with band saw machine, strong power, high reliability, precision balance correction, reduce noise and vibration.
4. The unique hydraulic system design of the band saw machine makes the descending speed stable. This precision system can prevent abnormal damage of the saw blade and achieve the ideal sawing effect.
5. The band saw machine can be equipped with large-stroke electric roller wheel material rack, which can quickly realize the movement and positioning of the workpiece, reduce the labor intensity of workers and improve work efficiency.
Product Tags:
|
|

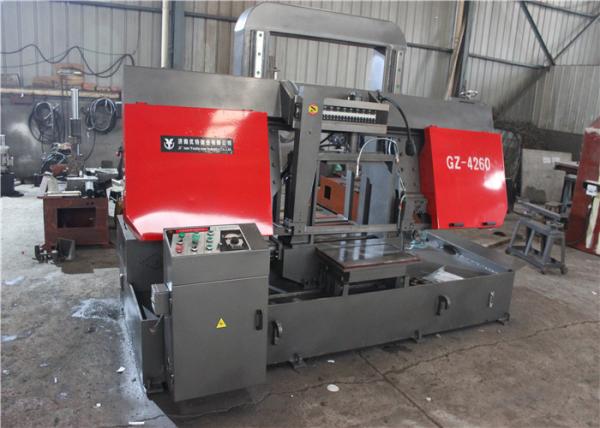

5.5kw GZ4260 CNC Cutting Metal Band Saw Machine Images
|
