The Production Of Oil And Gas Steelpipe With Elbow Manufacturing Machine
1. Elbow technical parameters:(raw pipe material:seamless steel pipe, ERW pipe and spiral welded pipe.
1) Elbow range:OD:φ21mm~φ1420mm;wall thickness:3mm~120mm;
2) Angle:45°,90°,180° and random angle user demands
3) Elbow bending radius range:1D~2.5D
4) It can push kinds of bend pipes with different radius as required, also called unequal diameter bend.

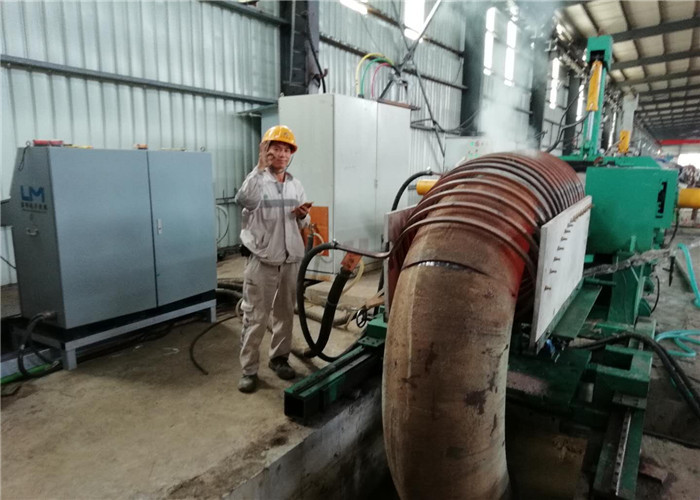

2. Structure:equipment base and guide rail, main oil cylinder and support plate, active push plate, front support plate, loading mechanism, medium frequency coil adjustment mechanism ( medium frequency heating coil, elbow die, mould pull rod), medium frequency power supply heating mechanism, electric control system, hydraulic control system, operation desk , water cooling circulating system.
3. Auxiliary equipments: hydraulic press machine (for elbow shape correct use),pipe cutting machine (we have auto pipe cutting machine ) ,elbow beveling machine (have manual also auto beveling machine ),shot blasting machine . marking machine .
4. We also can offer the elbow machine with auto feeding system ,can save operator ,speed more fast .
1.Product Paramete
| Model | Size Range (mm) | Clamping Force (KN) | Pushing Force (KN) | Ratedworking pressure (MPa) | Total power of motor (KW) | Total Weight (kg) |
| HYLW-100 | Φ25-Φ76 | 1000 | 630 | 25 | 11 | 6300 |
| HYLW-200 | Φ34-Φ114 | 2000 | 1250 | 25 | 18.5 | 9000 |
| HYLW-400A | Φ133-Φ273 | 4000 | 2500 | 25 | 29.5 | 38000 |
| HYLW-400B | Φ108-Φ219 | 4000 | 2500 | 25 | 29.5 | 35000 |
| HYLW-630 | Φ133-Φ325 | 6300 | 3150 | 25 | 36 | 48000 |
| HYLW-800 | Φ219-Φ377 | 8000 | 4500 | 25 | 42 | 76000 |
| HYLW-1000 | Φ273-Φ426 | 10000 | 5000 | 25 | 65 | 98000 |
| HYLW-1600 | Φ325-Φ530 | 16000 | 8000 | 25 | 88.5 | 130000 |
| HYLW-2000 | Φ406-Φ630 | 23000 | 12000 | 25 | 110 | 200000 |
